Product Details

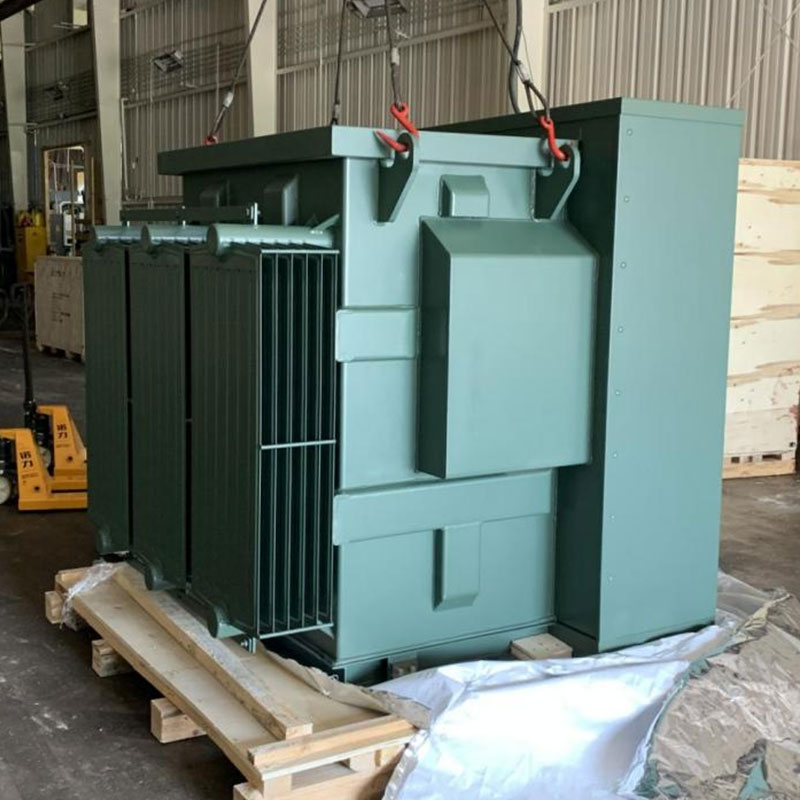

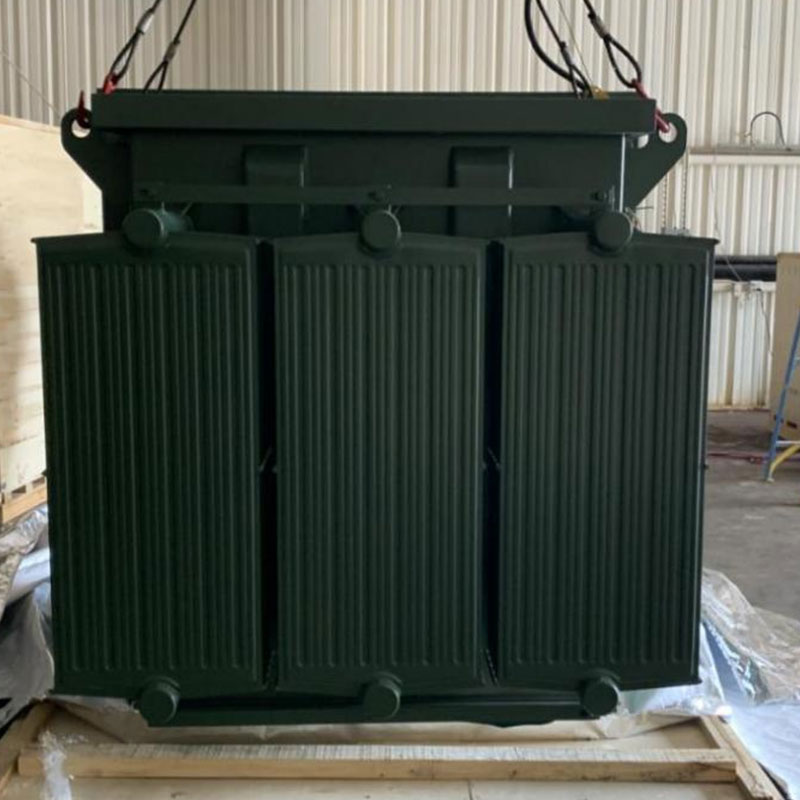

XENERPOWER Pad-Mounted Transformers are fully sealed, three-phase liquid-filled units engineered for safe, ground-level power distribution in commercial, industrial, utility, solar, and battery-energy-storage (BESS) applications.
Key Features
- Compartmental Dead-Front Design: Fully sealed, three-phase liquid-filled construction provides safe, enclosed operation with no exposed energized parts and no additional insulating clearances.
- Sealed & Insulated: Robust tank sealing and corrosion-resistant finish protect against moisture ingress and environmental exposure.
- Reliable Performance: Low-loss, low-noise design with high overload capability and short-circuit strength.

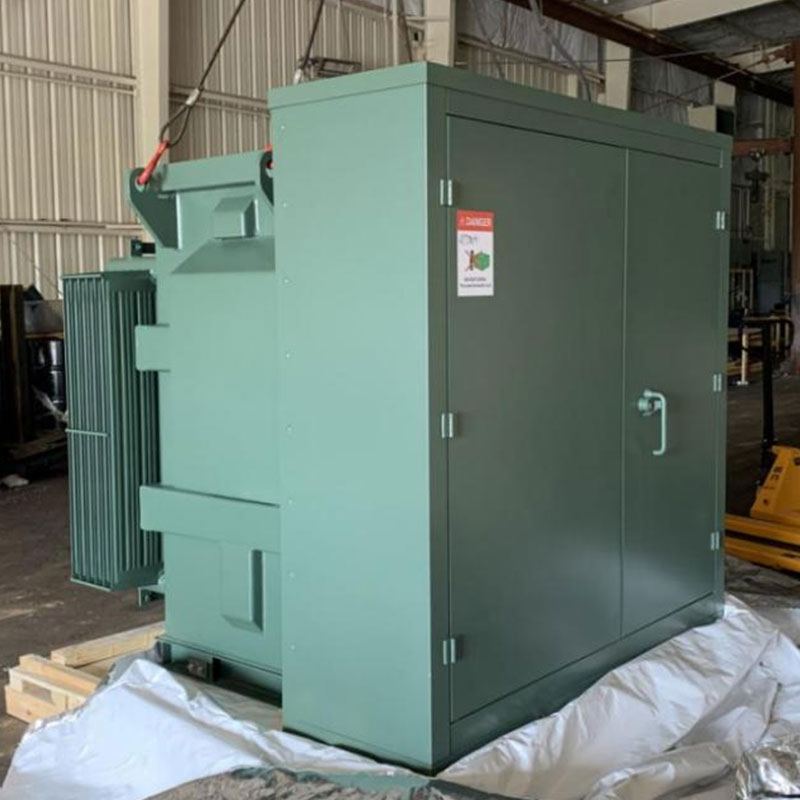

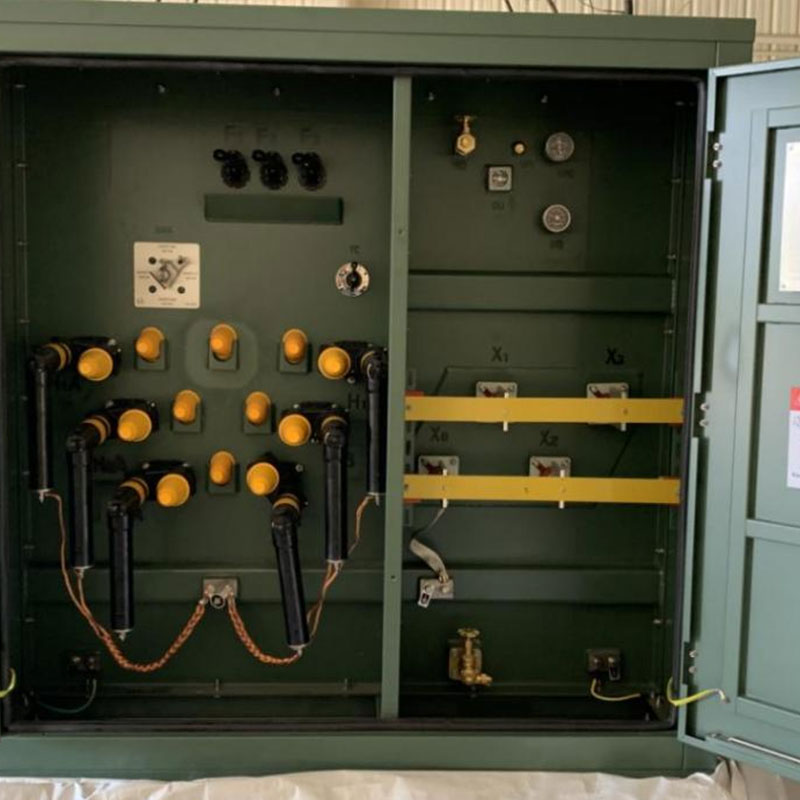

- Secure Construction: Lifting lugs, hinged doors, welded ground terminals, voltage barriers, and anti-corrosion surface finish; dead-front high-voltage and live-front low-voltage compartments.
General Specifications
| Capacity Range | 30 kVA to 5000 kVA |
| High Voltage | Up to 34.5 kV (any typical range) |
| Low Voltage | Up to 13.8 kV (any typical range) |
| Vector Group | Dyn11, Dyn1, YNyn0, YNd11 |
| Enclosure Rating | NEMA 3R weatherproof |
| Design Spec. (Application) | Standard Step-down, Solar Step-up, BESS Duty Bi-directional |
| Lead Time | 12 weeks or less |
Standards & Compliance
UL Listing certified. Designed and tested to IEEE C57.12.34 (three-phase pad-mounted) and IEEE C57.12.28 (enclosure integrity), with IEEE C57.12.00 / C57.12.90, in accordance with applicable UL and CSA requirements, DOE 2016, NEC, and NEMA standards.
