XENERPOWER Dry-Type VPI Transformer
Click to enlarge

Dry-Type VPI Transformer

1. VPI Insulation System: Vacuum-pressure impregnation with premium varnish seals the windings for superior moisture resistance, thermal stability, and dielectric strength over a long service life.

2. High Efficiency: Low-loss core of grain-oriented silicon steel minimizes energy losses and operating cost.

3. Environmental Safety: No oil or liquid coolant, eliminating fire hazards and environmental-contamination risk; ideal for indoor installation.

Product in stock
Categories: Dry-Type VPI Transformer, Transformers
Share:
  • Description
Description

Product Details

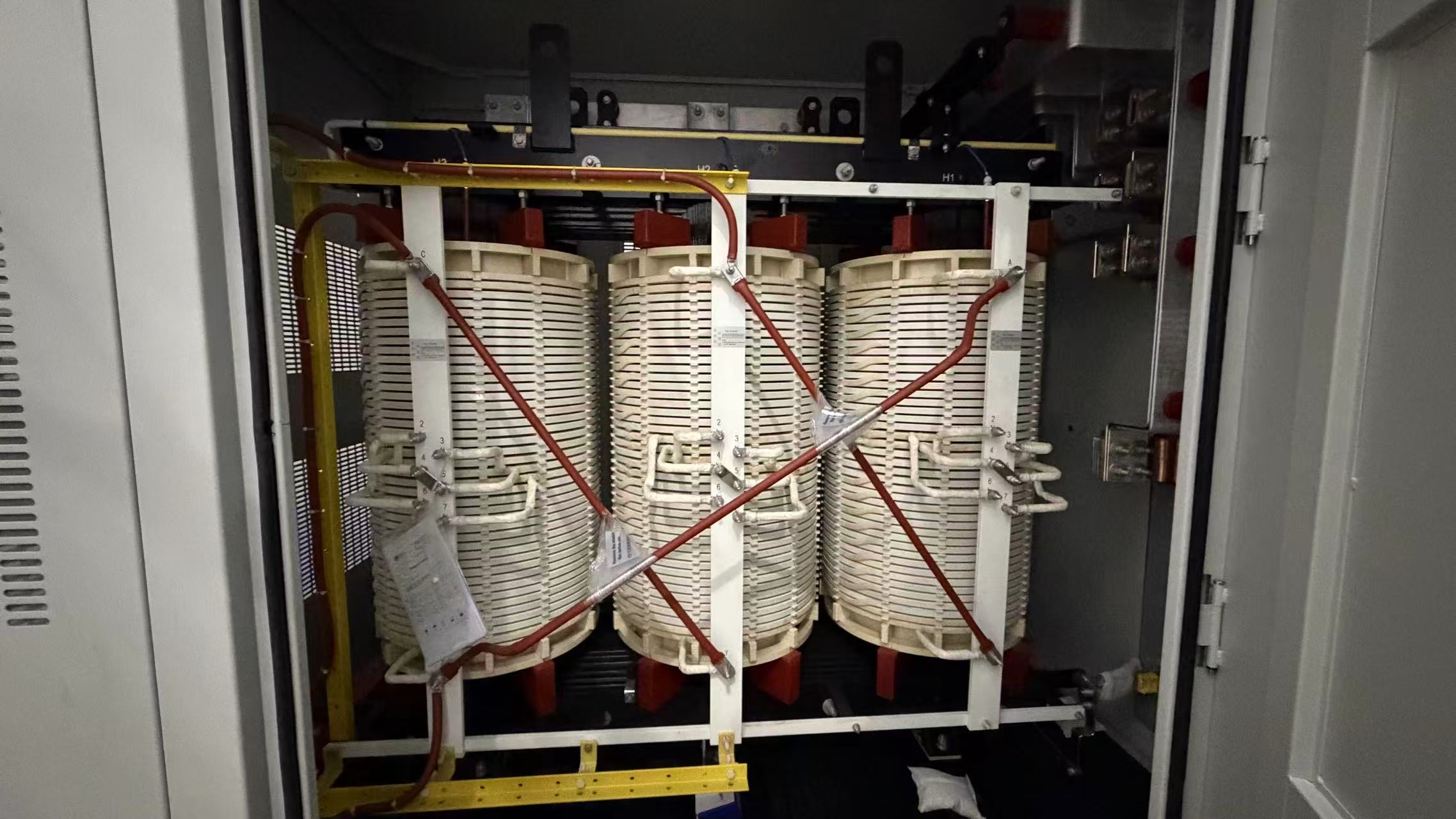

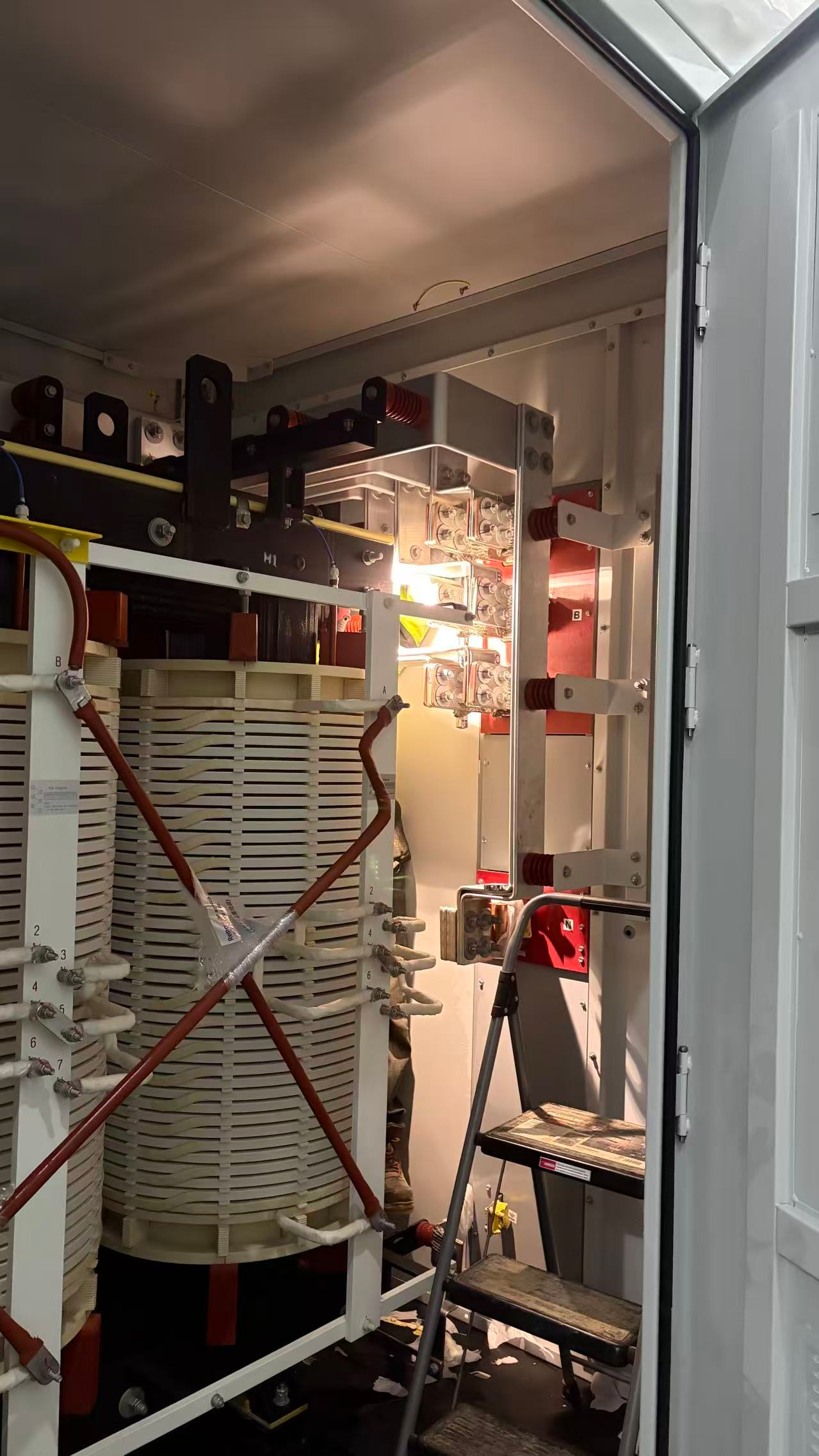

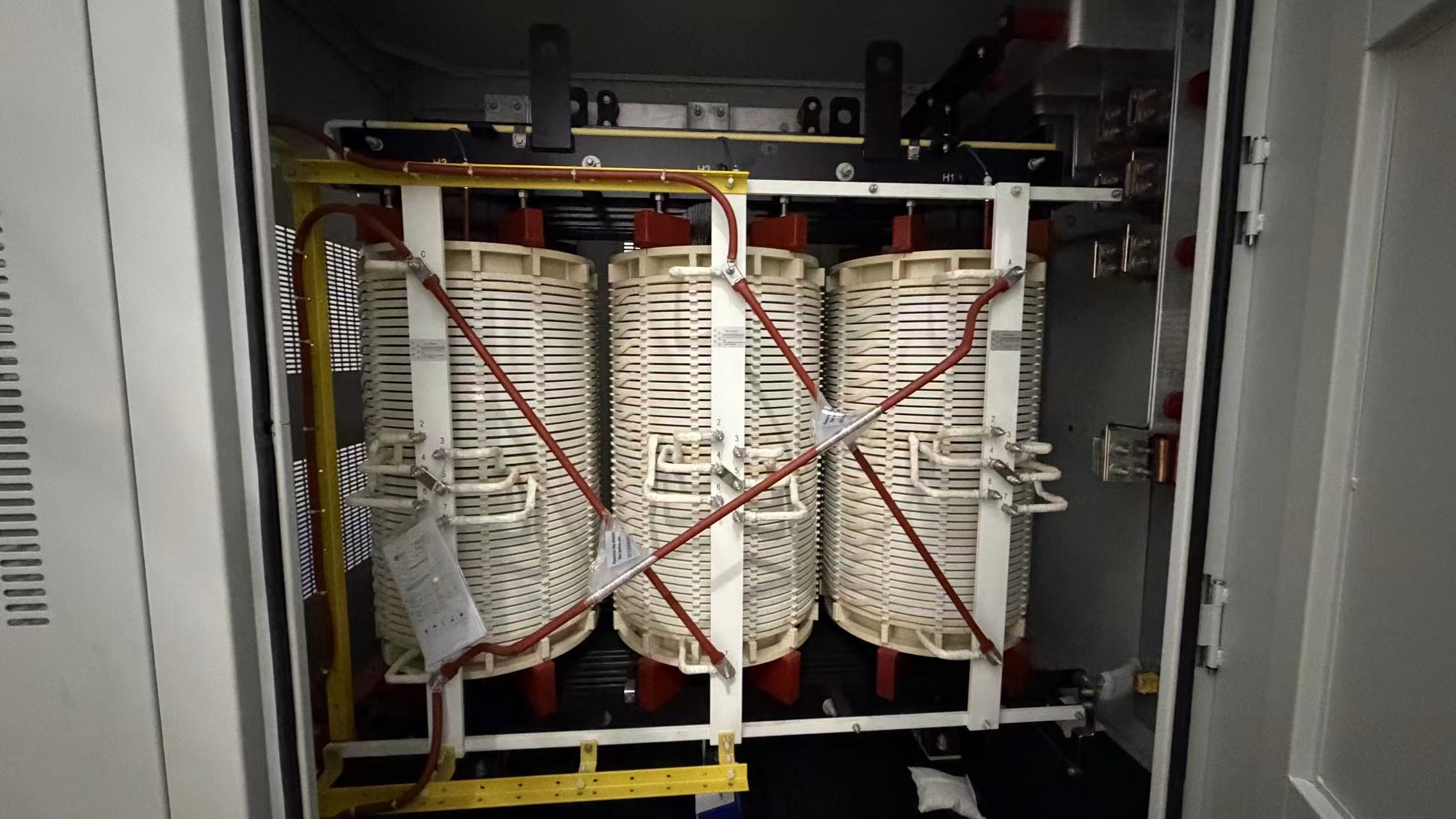

XENERPOWER Dry-Type VPI (Vacuum Pressure Impregnated) Transformers use premium-varnish-sealed windings for superior moisture resistance, thermal stability, and dielectric strength, engineered for reliable power distribution in commercial, industrial, and utility applications.

Key Features

  • VPI Insulation System: Vacuum-pressure impregnation with premium varnish seals the windings for superior moisture resistance, thermal stability, and dielectric strength over a long service life.
  • High Efficiency: Low-loss core of grain-oriented silicon steel minimizes energy losses and operating cost.
  • Environmental Safety: No oil or liquid coolant, eliminating fire hazards and environmental-contamination risk; ideal for indoor installation.
  • Wide Voltage Range: Primary voltages of 2400–34500 V with secondaries of 120–4160 V support diverse application requirements.
  • Robust Construction: Heavy-gauge steel enclosure with corrosion-resistant powder coating for harsh industrial environments.

General Specifications

Capacity Range 15 kVA – 5000 kVA
High Voltage 2400 – 34500 V
Low Voltage 120 – 4160 V
Insulation Class Class H
Winding Material Aluminum or Copper
Enclosure NEMA 1 indoor, NEMA 3R outdoor
Phase Options Three-phase and single-phase available
Lead Time 12 weeks or less

Standards & Compliance

UL Listed to UL 1562 and CSA certified to CSA C22.2 No. 47; designed and tested to IEEE C57.12.01 / C57.12.91 and NEMA ST 20, NEC-compliant.

Applications

  • Commercial buildings and data centers
  • Industrial manufacturing facilities
  • Solar and renewable energy installations
  • Mining and oil/gas operations
  • Hospitals and critical infrastructure
  • Underground and enclosed substations

Related products

Pole-Mounted Transformer

XENERPOWER Cast Resin Transformer

Cast Resin Transformer

XENERPOWER Low-Voltage Dry-Type Transformer

Low-Voltage Dry-Type Transformer

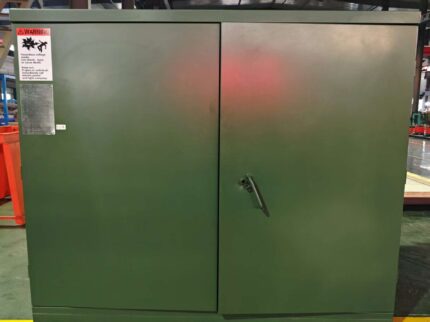

XENERPOWER Pad-Mounted Transformer
